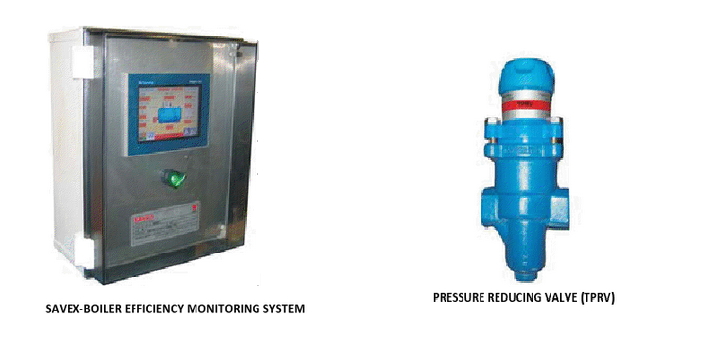

PRESSURE REDUCING VALVE (TPRV)
APPLICATION:
Pressure reduction for saturated steam and compressed air
RANGE:
•Capacity: 250 Kg/h Max
•Size:15, 20, 25 mm NB
TECHNICAL SPECIFICATIONS:
•Design pressure body PN 25
•Max upstream pressure 19 Kg/cm (air)
•Max downstream pressure 8.6 Kg/cm
•Design temperature 210 C
•End connections screwed BSP/ NPT
•Down stream set pressure range 0.14 to 1.7/ 1.4 to 4/ 3.5 to 8.6 Kg/cm
MOC:
•Body SG Iron GGG 40.3
•Internals SS
FEATURES:
•Special set pressure locking arrangement
•Suitable for steam and compressed air
•Compact design fully self acting
•No external signal required for down stream pressure control
•Operates even on low flow conditions
•Both IBR Certified & Non IBR pressure reducing valve available
And
SAVEX-BOILER EFFICIENCY MONITORING SYSTEM
APPLICATION:
•A state of the art efficiency monitoring system which takes inputs from
key field instruments and gives performance efficiency of the combustion
equipment.
TECHNICAL SPECIFICATIONS:
•Display: Attractive touch screen display
•Input/output: Expandable analog/ pulse/ digital available
•PC connectivity: Provided through ethernet port using SCADA
•Reports: Daily/ Shift Log/ Off Line trend analysis/ standard reports through SCADA
FEATURES OF SAVEX :
•Standard package displays continuous monitoring of 15+ parameters in general accordance to BS 845
•Improvement in efficiency due to better operation of boiler / heater, ascontinuous performance monitoring is done.
•PC communication through ethernet using SCADA for online trending and historical data analysis that helps in better load management and preventive maintenance.
•Special tool in SCADA is the ‘Master Analyst’ to analyse graphical trends online as well as historical.
•Alarms and alarm reporting
•Fully up gradable input channels permit connection of additional field instruments
